Fast meets fun
Fast, nimble and fun.
Sometimes less is more, especially if you don’t have access to challenging and steep trails. Less travel on easier routes will make you feel more, and it will also give you more fun. Most new bikes offer more travel, more aggressive frame geometry, faster ride times. But at end of the day isn’t the goal of mountain biking simply to have fun?
With this idea in mind, the VHP15 was designed to offer a more enjoyable experience in simpler terrain. The VHP15 prioritises fun,making it the perfect choice for riders who want to relish the thrill of the ride, no matter the difficulty level of the trails.
Virtual High Pivot Suspension Design
While many high-pivot frames use a single-pivot or linkage-driven single-pivot suspension design, our frames rely on the trusted Horst Link suspension layout. VHP stands for Virtual High Pivot.

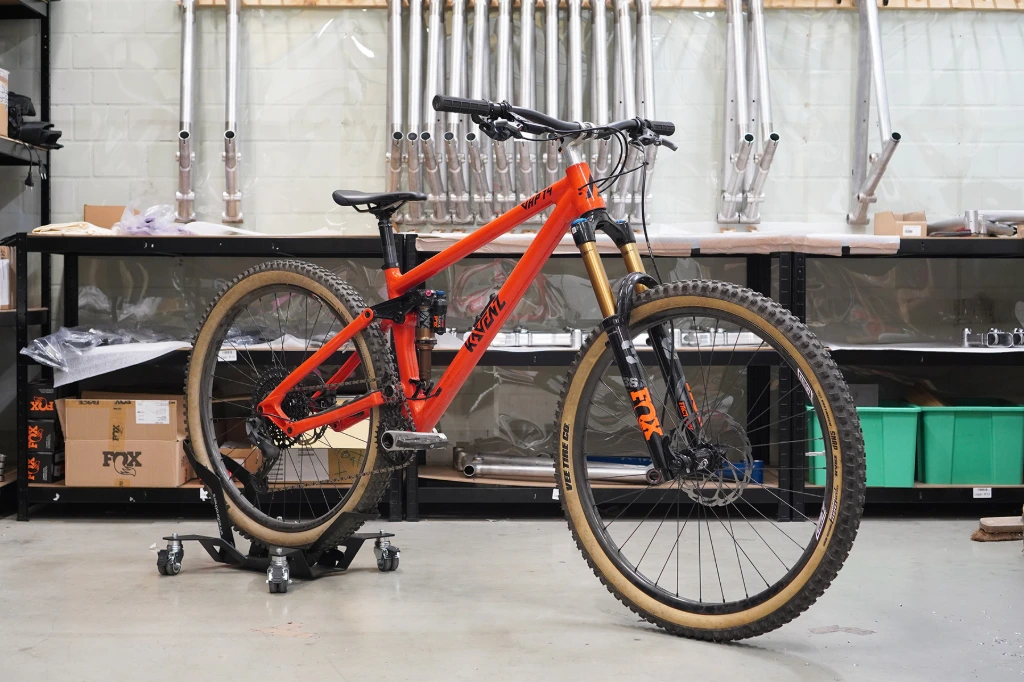

VHP15 29
geometry
| Geometry Table VHP15 29 | ||||||
|---|---|---|---|---|---|---|
| Size | S | M | L | XL | 2XL | 3XL |
| A: Reach | 452 | 472 | 492 | 505 | 525 | 545 |
| B: TT Length | 580 | 600 | 620 | 633 | 653 | 673 |
| C: Stack | 630 | 630 | 630 | 644 | 644 | 644 |
| D: Seattube Effective | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
| E: Saddle Height Effective ST | 750 | 750 | 750 | 750 | 750 | 750 |
| F: Seat Tube Length | 420 | 420 | 450 | 450 | 480 | 480 |
| G: Head Tube Length | 110 | 110 | 110 | 125 | 125 | 125 |
| H: Head Tube Angle | 65 | 65 | 65 | 65 | 65 | 65 |
| I: Based on ACT | 571 | 571 | 571 | 571 | 571 | 571 |
| J: Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| K: Chain Stay Length* | 425 | 425 | 435 | 435 | 445 | 445 |
| *Based on Drop Out | 0 | 0 | 10 | 10 | 20 | 20 |
| L: Wheelbase* | 1200 | 1220 | 1250 | 1270 | 1300 | 1320 |
| *Based on Drop Out | 0 | 0 | 10 | 10 | 20 | 20 |
| M: Bottom Bracket Drop | 26 | 26 | 26 | 26 | 26 | 26 |
| Actual ST Angle | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| Seattube Offset at BB | 30 | 30 | 30 | 30 | 30 | 30 |
| Estimated BB Height 29 | 353 | 353 | 353 | 353 | 353 | 353 |
| Stand Over Height | 793 | 793 | 793 | 793 | 793 | 793 |
| *Plus 11mm in SAG (CS length can be adjusted by changing the dropouts) |
specs
| Specifications | |
|---|---|
| Size Options | S, M, L, XL, 2XL, 3XL (Semi Custom Available) |
| Rear Travel | 150mm (Convertible to 160mm or 180mm*) |
| Shock | Trunnion 205x60 (Mounting Hardware: 22x8mm) |
| Fork Compatibility | 150-160mm (Crown to Axle: 557-571mm) |
| Headset | ZS44/28.6 | ZS56/40 (for Tapered Forks) |
| Rear Brake | IS 2000 (Compatible with 160-220mm Discs) |
| Rear Hub/Axle | 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread |
| Bottom Bracket | 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide) |
| Chainline Idler Pulley | Adjustable 50.5-52-53.5** |
| Tire Clearance | 29" x 2.6 |
| Seattube | 31.6mm Inside Diameter / 35mm Outside Diameter |
| Seatpost | 31.6mm with Internal Seatpost Cable Routing |
| Seatpost MAX Insert | 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm |
| Bottle | 750ml (Sideload Bottle Cage Only) |
| Idler Pulley | 16T N/W SS (Durable and Efficient) |
| Bearings | One Size 15x28x7 Max Type Black Oxide Bearings |
| Weight | 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M) |
| Frame Material | Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075 |
| Axles Material | Titanium Grade 5 (Eliminates Hex Wear) |
| *Can be achieved by replacing the shock mount and/or shock. | |
| **Transitioning from a 55 chainring to a 53.5 idler pulley optimizes the overall chainline |
why vhp15
FAST
The VHP15 has our proven Kavenz DNA, it’s a bike that will make you faster.
NImble
The steeper head angle makes it more direct and responsive.
FUN
The super short 419mm Chainstays make it super playfull.
AT KAVENZ WE OFFER LOT OF CUSTOMISATIONS FOR YOUR FRAME
