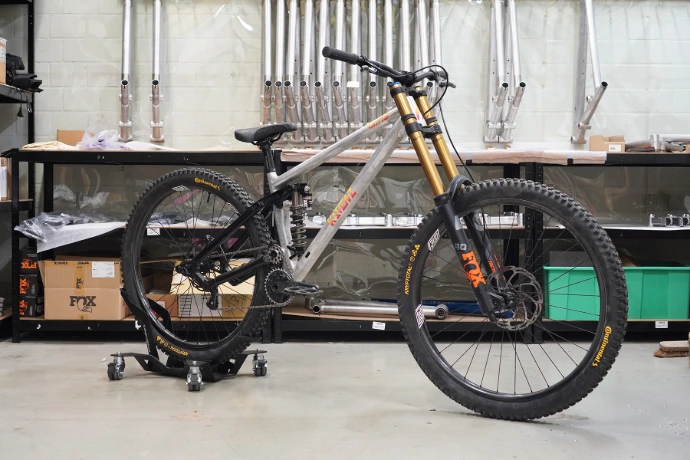

The monsteR
We Created a Monster.
More is more, especially if you love DH Racing, Freeride, or long days in the Bikepark. More Travel means you won´t get tired as fast, so you can charge harder and longer. However, what you won´t believe is how well this bike pedals. It has a super high anti-squat and pedals super easy to the top so that you can as well use it as a super enduro.
Virtual High Pivot Suspension Design
While many high-pivot frames use a single-pivot or linkage-driven single-pivot suspension design, our frames rely on the trusted Horst Link suspension layout. VHP stands for Virtual High Pivot.
VHP18 29

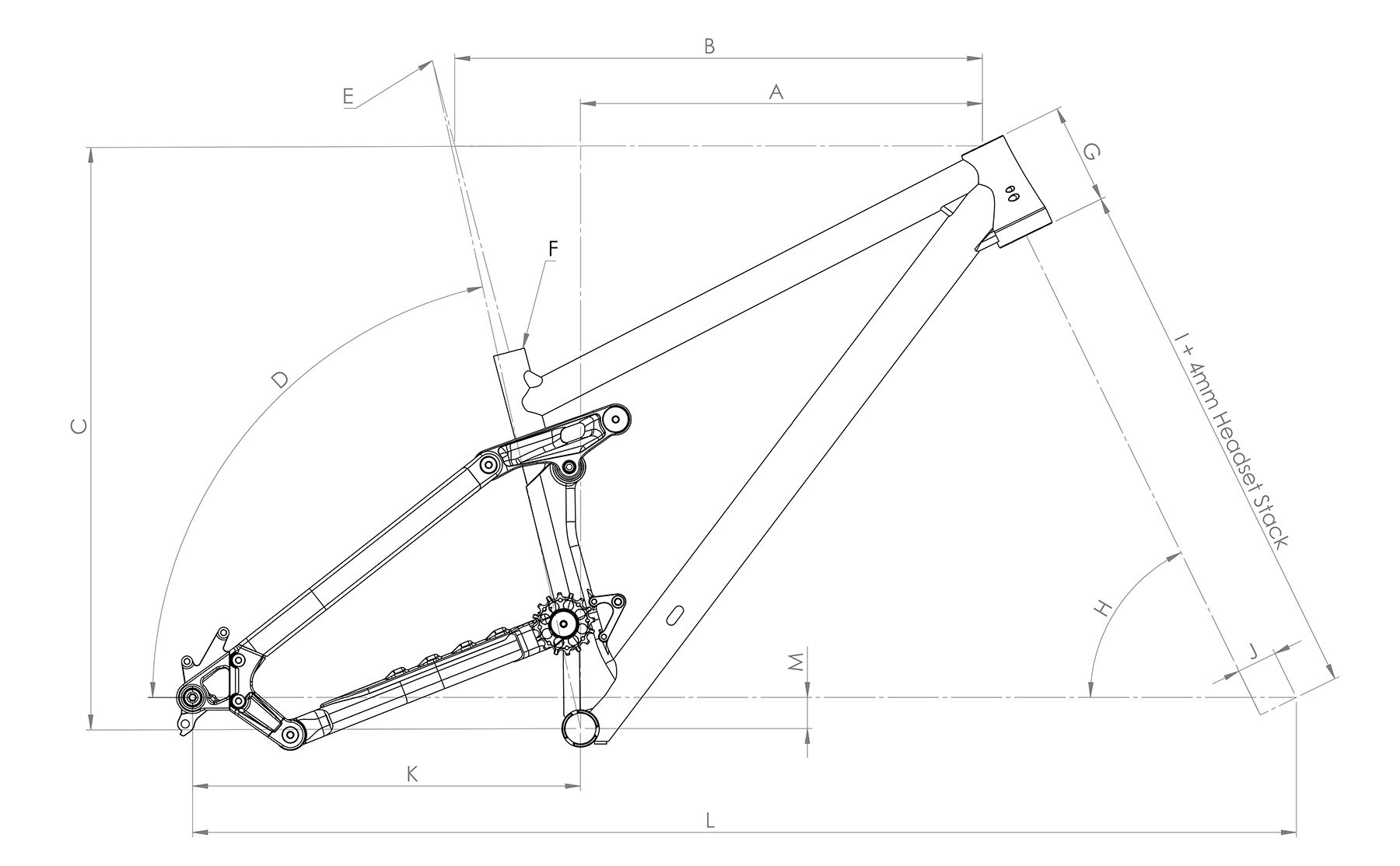

geometry
| Geometry Table VHP18 29 | ||||||
|---|---|---|---|---|---|---|
| Size: | S | M | L | XL | 2XL | 3XL |
| A: Reach | 432 | 452 | 472 | 485 | 505 | 525 |
| B: TT Length | 583 | 603 | 623 | 636 | 656 | 676 |
| C: Stack | 644 | 644 | 644 | 657 | 657 | 657 |
| D: Seattube Effective | 76.8 | 76.8 | 76.8 | 76.8 | 76.8 | 76.8 |
| E: Saddle Height Effective ST | 750 | 750 | 750 | 750 | 750 | 750 |
| F: Seat Tube Length | 420 | 420 | 450 | 450 | 480 | 480 |
| G: Head Tube Length | 110 | 110 | 110 | 125 | 125 | 125 |
| H: Head Tube Angle | 63.3 | 63.3 | 63.3 | 63.3 | 63.3 | 63.3 |
| I: Based on ACT | 601 | 601 | 601 | 601 | 601 | 601 |
| J: Fork Offset | 58 | 58 | 58 | 58 | 58 | 58 |
| K: Chain Stay Length* | 439 | 439 | 439 | 439 | 439 | 439 |
| L: Wheelbase | 1244 | 1264 | 1284 | 1304 | 1324 | 1344 |
| M: Bottom Bracket Drop | 32 | 32 | 32 | 32 | 32 | 32 |
| Actual ST Angle | 75 | 75 | 75 | 75 | 75 | 75 |
| Seattube Offset at BB | 30 | 30 | 30 | 30 | 30 | 30 |
| Estimated BB Height | 345 | 345 | 345 | 345 | 345 | 345 |
| Stand Over Height | 785 | 785 | 785 | 785 | 785 | 785 |
| *Plus 15 in SAG (CS length can not be adjusted) | ||||||
| We continue to offer bespoke custom geometry, allowing you to tailor the reach, seat tube, and head tube metrics to your exact specifications. |
specs
| Specifications | |
|---|---|
| Size Options | S, M, L, XL, 2XL, 3XL (Semi Custom Available) |
| Rear Travel | 184mm (Convertable to 150mm or 160mm*) |
| Shock | Trunnion 225x75 (Mounting Hardware: 22x8mm) |
| Fork Compatibility | 180-200mm (Crown to Axle: 591-601mm) |
| Headset | ZS44/28.6 | ZS56/40 (for Tapered Forks) |
| Rear Brake | IS 2000 (Compatible with 160-220mm Discs) |
| Rear Hub/Axle | 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread |
| Bottom Bracket | 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide) |
| Chainline Idler Pulley | Adjustable 50.5-52-53.5** |
| Tire Clearance | 29" x 2.6 |
| Seattube | 31.6mm Inside Diameter / 35mm Outside Diameter |
| Seatpost | 31.6mm with Internal Seatpost Cable Routing |
| Seatpost MAX Insert | 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm |
| Bottle | 750ml (Sideload Bottle Cage Only) |
| Idler Pulley | 16T N/W SS (Durable and Efficient) |
| Bearings | One Size 15x28x7 Max Type Black Oxide Bearings |
| Weight | 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M) |
| Frame Material | Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075 |
| Axles Material | Titanium Grade 5 (Eliminates Hex Wear) |
| *Can be achieved by replacing the shock mount and/or shock. | |
| **Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainline |
VHP18 mx
geometry
| Geometry Table VHP18 MX | ||||||
|---|---|---|---|---|---|---|
| Size | S | M | L | XL | 2XL | 3XL |
| A: Reach | 432 | 452 | 472 | 485 | 505 | 525 |
| B: TT Length | 583 | 603 | 623 | 636 | 656 | 676 |
| C: Stack | 644 | 644 | 644 | 657 | 657 | 657 |
| D: Seattube Effective | 77 | 77 | 77 | 77 | 77 | 77 |
| E: Saddle Height Effective ST | 750 | 750 | 750 | 750 | 750 | 750 |
| F: Seat Tube Length | 420 | 420 | 450 | 450 | 480 | 480 |
| G: Head Tube Length | 110 | 110 | 110 | 125 | 125 | 125 |
| H: Head Tube Angle | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| I: Based on ACT | 601 | 601 | 601 | 601 | 601 | 601 |
| J: Fork Offset | 58 | 58 | 58 | 58 | 58 | 58 |
| K: Chain Stay Length* | 419 | 419 | 429 | 429 | 439 | 439 |
| *Based on Drop Out | 0 | 0 | 10 | 10 | 20 | 20 |
| L: Wheelbase* | 1224 | 1244 | 1274 | 1294 | 1324 | 1344 |
| M: Bottom Bracket Drop* | 18 | 18 | 18 | 18 | 18 | 18 |
| Actual ST Angle | 75 | 75 | 75 | 75 | 75 | 75 |
| Seattube Offset at BB | 30 | 30 | 30 | 30 | 30 | 30 |
| Estimated BB Height 29 | 348 | 348 | 348 | 348 | 348 | 348 |
| Stand Over Height | 788 | 788 | 788 | 788 | 788 | 788 |
| *Plus 15mm in SAG (Chain Stay length can be adjusted by changing the dropouts) |
specs
| Specifications | |
|---|---|
| Size Options | S, M, L, XL, 2XL, 3XL (Semi Custom Available) |
| Rear Travel | 182mm (Convertable to 150mm or 160mm*) |
| Shock | Trunnion 225x75 (Mounting Hardware: 22x8mm) |
| Fork Compatibility | 180-200mm (Crown to Axle: 591-601mm) |
| Headset | ZS44/28.6 | ZS56/40 (for Tapered Forks) |
| Rear Brake | IS 2000 (Compatible with 160-220mm Discs) |
| Rear Hub/Axle | 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread |
| Bottom Bracket | 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide) |
| Chainline Idler Pulley | Adjustable 50.5-52-53.5** |
| Tire Clearance | 27,5" x 2.6 (When converted to VHP16-29 the 29" wheels fit as well) |
| Seattube | 31.6mm Inside Diameter / 35mm Outside Diameter |
| Seatpost | 31.6mm with Internal Seatpost Cable Routing |
| Seatpost MAX Insert | 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm |
| Bottle | 750ml (Sideload Bottle Cage Only) |
| Idler Pulley | 16T N/W SS (Durable and Efficient) |
| Bearings | One Size 15x28x7 Max Type Black Oxide Bearings |
| Weight | 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M) |
| Frame Material | Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075 |
| Axles Material | Titanium Grade 5 (Eliminates Hex Wear) |
| *Can be achieved by replacing the shock mount and/or shock. | |
| **Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainline |
why vhp18
FAST
The VHP18 has our proven Kavenz DNA, it’s a bike that will make you faster.
BIG
Slacker Angles and more travel make it the big brother of the VHP 16
FUN
The short 419mm Chainstays make it super playfull and easy to control.
AT KAVENZ WE OFFER LOT OF CUSTOMISATIONS FOR YOUR FRAME
